Applying filters to list output

Explanation

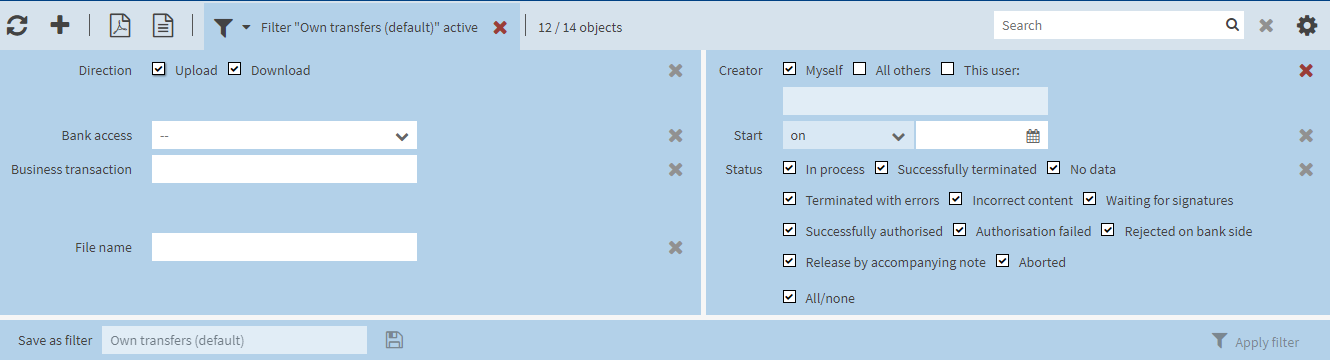

To restrict the displayed list elements, many lists of the application have a filter area.

The filter area of a mask depends on the display fields of the list. Depending on which information is displayed in the list, related filter criteria are available which you activate via checkboxes, selection lists, input fields or calendar fields. The filters do not differentiate between upper- and lowercase letters.

By means of the status display of the filter (Filter active or No filter active) in the upper button bar of a list, you can see whether a filter is active for the opened list. In the status display it is also indicated how many list elements the filter criteria are applied to and how many list elements exist in total.

For some lists a default filter is defined. The default filter is included in the scope of delivery of the application. You cannot change or delete the default filter. You recognise the default filter by the addition (default) in the filter name.

For lists with configurable columns you can define and save up to ten filters with a name of your choice. The filter name may have up to 150 characters. You can define one filter per list as the start filter, which is then active when the mask is opened.

You recognise lists with configurable columns by the button next to the search field.

Steps to define filters

1.

Click on or on the status display of the filter.

The mask area for selecting the filter criteria opens.

2.

Select the filter criteria in the displayed fields, or fill the filter criteria into the input fields.

3.

To reset individual filter criteria, click on next to the filter criterion.

The button is only active if you have defined this filter criterion.

4.

Only for lists with configurable columns: To permanently save the selected filter criteria, enter a name for the filter in the field Save as filter.

Save your input.

In the selection list, your saved filter is displayed in the status area of the filter.

5.

To apply a filter to the displayed list, click on Apply filter.

In the filter's status area, the number of list elements to which the defined filter applies is displayed. The filtered list is displayed.

6.

To reset all defined filter criteria for this mask, click on in the button bar above the filter area.

The button is only active if a filter is active.

7.

To close the mask for entering the filter criteria, click on or the filter status text.

If you close the filter area, the selected filter remains active.

Steps to apply a saved filter (only for lists with configurable columns)

1.	Open the selection list with the saved filters via the button in the status area of the filter.

2.	Select the desired filter.

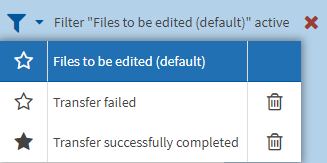

Procedure for defining a start filter

1.

Open the selection list with the saved filters. For this, in the status area of the filter click on .

2.

Next to the desired filter click on .

The start filter is indicated by a filled-in asterisk.

3.

To deselect the start filter, click on .

Example of a status display

The display has the following meaning:

	A filter is active.
	The number of list elements found with the filter criteria is zero.
	The total number of existing list elements is three.

The displayed list is empty, even though three list elements exist. The existing list elements do not match the defined filter criteria.
